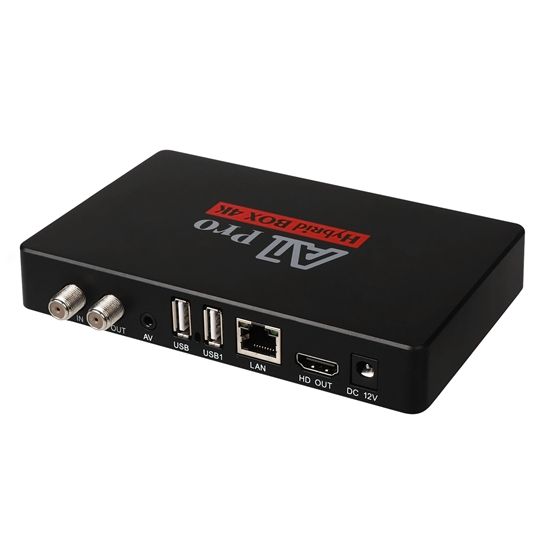

A1 pro Hybrid Box 4K OTT+T2+S2+C Satellite Tv Receiver

Home > Products > TV BOX > Android Hybrid > A1 pro Hybrid Box 4K OTT+T2+S2+C Satellite Tv Receiver

1 It can working all over the world FTA Satellite HD/SD ChannelJamendo
2 support Internet IKS,Biss key and Power VU Code Setting
3 Support USB PVR Ready and USB wifi to Network Sharing
4 Support IPTV, Youporn via usb Wifi dongle
5 Support single / multiple or blind search satellite search

A1 pro

A1 pro

A1 pro


Compete with DVB-S2, DVB-S2X has higher spectral efficiency, faster access speed, and better mobility operformance


A1 pro

A1 pro

A1 pro



Whats in the box?

1. - 1 x TV Box

2. - 1 x Remote control(Battery not include)

3. - 1 x Power Supply

4. - 1 x HD Cable

5. - 1 x User Manual



How to use it?

1. Turn on The TV and set the TV to “HDMI” mode

2. HDMI cord is connected to “TV BOX”, and the other side is connected TV HDMI interface.

3. Connect to the power adapter, the machine automatically boot into the Android OS

4. The wireless mouse receiver is connected to TV Box USD interface, Then you can use wireless mouse to operate it.


A1 pro Hybrid Box 4K OTT T2 S2 C Satellite Tv Receiver

Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years. Gecen Intelligent the branch company of “Gecen”.

Our product range are Android TV Box, IPTV Service, WiFi product and Smart Home.

We have our own factory, which has more than 20,000 square meters. we own a professional factory with more than 300 workers for 12 production lines .

A1 pro Hybrid Box 4K OTT T2 S2 C Satellite Tv Receiver

FAQ

Q1: If I have no idea to customize, Could you help me make wonderful giftbox?

Sure, We have prefessional designer to customize, Just let us know what style you want then we will send serval first draft for you to choose. We believe that we can design a unique amazing giftbox to you.



Q2: What after-service you can guarantee?

1. We provide one year Warranty and after- sale service.

2. We will do everything we can to reply your question.

3. Please clearly  your problem and tell us and we will answer you in 24 hours.

4. If there any problem with tv box Pls send us a video or send the PCBA to us, Our professional engineer will try to solve the question and feedback you. Giving you a satisfy answer. Also we will check every                   products before sending.



Q3: What’s the delivery time? (How long do you need to prepare my goods?)

 7 days For sample and small quantity order

15-30 working days for OEM & ODM orders (based on different quantities/request/).



Q4: How will you deliver my goods to me? How long to wait?

 You can select shipping options possibly, such as DHL, UPS, Fedex, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo for                      large quantity. 3-7 days for international express, 5-10 days for air cargo, 20-50 days by sea cargo.



Q5: What is the payment method?

We accept T/T,Western Union, Credit Card, etc according to the exact order amount.



Q6: How can I track the goods?

We will send you tracking number at second day after parcel shipping out. You can track the parcel on website.



Q7: Can you provide EU or US,UK,AU plug power adapter?

Yes, there are EU,UK,US,AU four standards of plugs are available. We will send the different adapter to you according your country and requirements.


style="display:block;">
HardwareCPUAmlogic S905D Quad Core ARM Coretex-A53 Up to 2.0GHz(DVFS) (Optional S912)
GPUPenta-Core ARM Mali-450 Up to 750MHz+(DVFS)
RAMDDRIII 1GB
EMMC FlashEMMC Flash 8GB (Optional 4GB,8GB,16GB,32GB)
WiFi802.11 b/g /n
BlutoothNO (Bluetooth 4.0Optional)
IRIR Infra Remote control
LED IndicatorRed LED Standby,Blue LED Run
DVB-T/T2 DemodulationDVB_T2 System standard: ETSIEN 302 755
Support MPLP
Demodulation: QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4.3/5,5/6
Guard interval: 1/4,19/256;1/8,19/128;1/16,1/32,1/128
Bandwith 6/7/8MHz
Input Frange range: 54--860MHz lnput lmpedance: 75
Input Signal levl: -84 dBm to 0 dBm(average power)
DVB-S/S2 DemodulationDVB-S\S2 system standard
Forward error correction rate 1/2,2/3,3/4.3/5,5/6.8/9,9/10
Input RF Frequency: 950MHz to 2150MHz
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
FFT Mode: 2k,8k
Symbol Rates: 1- 55 Msps
DVB-CReceiving Frequency: VHF174~230MHz/UHF 470~862MHz
Waveform: CDFDM
Bandwith: 6/7/8MHz
Demodulation: QPSK,16QAM,64QAM
Guard Modes Interval: 1/32,1/16,1/8,1/4
Mode: 2K/8K
