Highlight：
-CPU: Amlogic S905Y2Quad Core ARM Cortex A53
-GPU:ARMMail-G31 MP2
-OS:Google Android10ATV
- RAM/ROM:2GB/16GB
-Support 4K, HDR, H.265, 3D
- Support2.4G&5GDualWiFi,BT4.2
- Support:Youtube4K, Prime Video4K
- SupportGoogle Cast, share your video to your TV

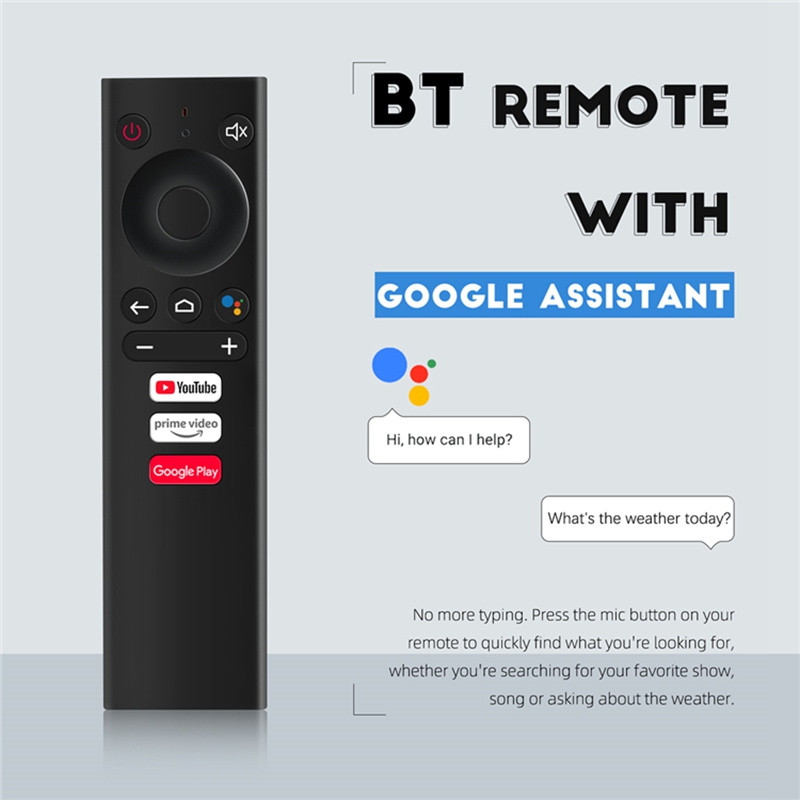

- Support24 countriesVoice Input via BT RC
Whats in the box?
1. - 1 x TV Box

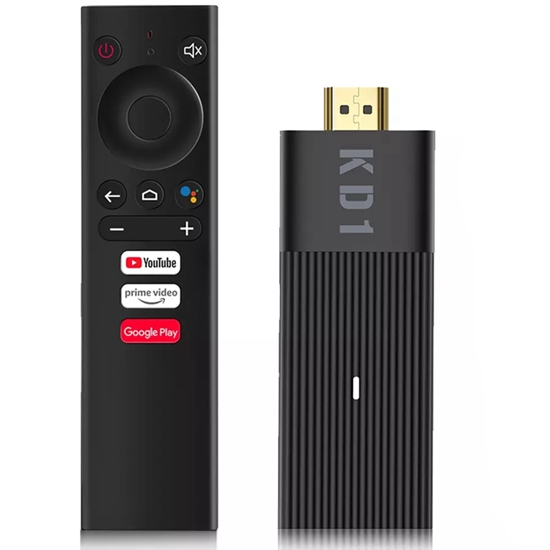

2. - 1 x Remote control(Battery not include)
3. - 1 x Power Supply
4. - 1 x HD Cable
5. - 1 x User Manual
How to use it?
1. Turn on The TV and set the TV to “HDMI” mode
2. HDMI cord is connected to “TV BOX”, and the other side is connected TV HDMI interface.
3. Connect to the power adapter, the machine automatically boot into the Android OS
4. The wireless mouse receiver is connected to TV Box USD interface, Then you can use wireless mouse to operate it.
Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years. Gecen Intelligent the branch company of “Gecen”.
Our product range are Android TV Box, IPTV Service, WiFi product and Smart Home.
We have our own factory, which has more than 20,000 square meters. we own a professional factory with more than 300 workers for 12 production lines .
FAQ
Q1: If I have no idea to customize, Could you help me make wonderful giftbox?
Sure, We have prefessional designer to customize, Just let us know what style you want then we will send serval first draft for you to choose. We believe that we can design a unique amazing giftbox to you.
Q2: What after-service you can guarantee?
1. We provide one year Warranty and after- sale service.
2. We will do everything we can to reply your question.
3. Please clearly your problem and tell us and we will answer you in 24 hours.
4. If there any problem with tv box Pls send us a video or send the PCBA to us, Our professional engineer will try to solve the question and feedback you. Giving you a satisfy answer. Also we will check every products before sending.
Q3: What’s the delivery time? (How long do you need to prepare my goods?)
7 days For sample and small quantity order
15-30 working days for OEM & ODM orders (based on different quantities/request/).
Q4: How will you deliver my goods to me? How long to wait?
You can select shipping options possibly, such as DHL, UPS, Fedex, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo for large quantity. 3-7 days for international express, 5-10 days for air cargo, 20-50 days by sea cargo.
Q5: What is the payment method?
We accept T/T,Western Union, Credit Card, etc according to the exact order amount.
Q6: How can I track the goods?
We will send you tracking number at second day after parcel shipping out. You can track the parcel on website.
Q7: Can you provide EU or US,UK,AU plug power adapter?
Yes, there are EU,UK,US,AU four standards of plugs are available. We will send the different adapter to you according your country and requirements.
| KD1 Dongle Specifications | |
| OS | Android 10 ATV |
| CPU | Amlogic S905Y2 Quad core ARM Cortex-A53 |
| GPU | ARM G31 MP2 |
| RAM | 2GB |
| ROM | 16GB |
| WiFi | Built in 2.4G&5G WiFi Support IEEE 802.11 b/g/n/ac |
| BT | BT 4.2 |
| Certified | Google Certified |
| DRM | Support microsoft playready, google widevine L1 |
| HDCP | Support HDCP2.2 |
| Language | English, German, French, Italian, Spanish, Chinese, Japanese, etc. 24 languages |
| HDR | HDR10 & HLG |
| Video decorder | Hardware Decoders |
| - VP9 Profile-2 up to 4K*2K.60fps | |
| - H.265 HEVC MP-10.L5.1 up to 4K*2K.60fps | |
| - AVS2-P2 Profile up to 4K*2K.60fps | |
| - H.264 AVC HP.L5.1 up to 4K*2K.30fps | |
| - H.264 MVC up to 1080P.60fps | |
| - MPEG-4 ASP.L5 up to 1080P.60fps (ISO-14496) | |
| - WMV/VC-1 SP/MP/AP up to 1080P.60fps | |
| - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P.60fps | |
| - MPEG-2 MP/HL up to 1080P.60fps (ISO-13818) | |
| - MPEG-1 MP/HL up to 1080P.60fps (ISO-11172) | |
| - RealVideo 8/9/10 up to 1080P.60fps | |
| - Multiple language and multiple format sub-title video support | |
| - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | |
| - Supports JPEG thumbnail, scaling, rotation and transition effects | |
| - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Decoder format | Video/Picture Encoding |
| - Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate | |
| - JPEG image encoding | |
| - H.265/H.264 video encoding up to 1080P.60fps with low latency | |
| Port | 1* HDTV support 4K*2K.60 max resolution output |
| 1* Micro USB DC 5V/1A | |
| Accessories | 1* Gift Box |
| 1* USB-Micro USB cable | |
| 1* BT Vioce remote | |
| 1* HDTV Cable | |
| 1* User Manual | |
