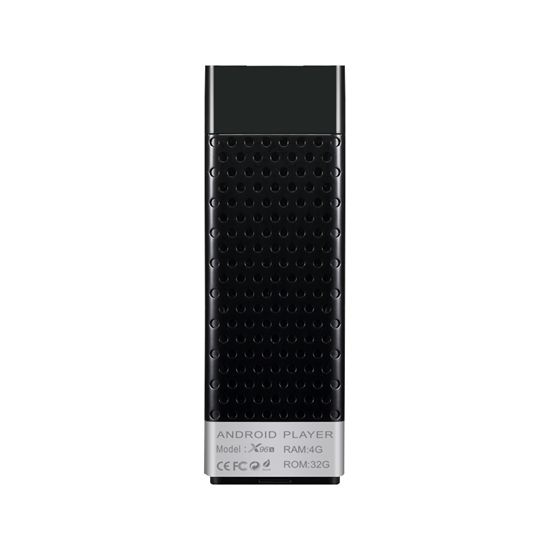

X96S Android 9.0 TV Stick Amlogic S905Y2 DDR3 4GB 32GB 5G WiFi BT 4.2 TV Dongle

Home > Products > TV BOX > TV Stick > X96S Android 9.0 TV Stick Amlogic S905Y2 DDR3 4GB 32GB 5G WiFi BT 4.2 TV Dongle

Highlight:

-Amlogic S905Y2Quad Core ARM Cortex A53 up to 2GHz

- ARM Dvalin MP2 GPU

-Android 9.0 OS

- DDR32GB/4GB, eMMC Flash 16GB/32GB

- Support HDR, 4K UHD, Airplay, Miracast

-Support HD 2.1, USB3.0

- Support 2.4GHz Wifi/2.4G+5.8GHz Dual Wifi, BT 4.2

- Support Firmware Online Upgrade

A: 2GB+16GB+2.4G Wifi+BT4.2

B: 4GB+32GB+2.4G&5GHz Dual Wifi+BT4.2

X96S

X96S

X96S

X96S

X96S

X96S

X96S

X96S

X96S


X96S





Whats in the box?

1. - 1 x TV Box

2. - 1 x Remote control(Battery not include)

3. - 1 x Power Supply

4. - 1 x HD Cable

5. - 1 x User Manual






How to use it?

1. Turn on The TV and set the TV to “HD” mode

2. HD cord is connected to “TV BOX”, and the other side is connected TV HD interface.

3. Connect to the power adapter, the machine automatically boot into the Android OS

4. The wireless mouse receiver is connected to TV Box USD interface, Then you can use wireless mouse to operate it.









X96S Android 9.0 TV Stick Amlogic S905Y2 DDR3 4GB 32GB 5G WiFi BT 4.2 TV Dongle

Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years. Gecen Intelligent the branch company of “Gecen”.

Our product range are Android TV Box, IPTV Service, WiFi product and Smart Home.

We have our own factory, which has more than 20,000 square meters. we own a professional factory with more than 300 workers for 12 production lines .

X96S Android 9.0 TV Stick Amlogic S905Y2 DDR3 4GB 32GB 5G WiFi BT 4.2 TV Dongle

FAQ

Q1: If I have no idea to customize, Could you help me make wonderful giftbox?

Sure, We have prefessional designer to customize, Just let us know what style you want then we will send serval first draft for you to choose. We believe that we can design a unique amazing giftbox to you.



Q2: What after-service you can guarantee?

1. We provide one year Warranty and after- sale service.

2. We will do everything we can to reply your question.

3. Please clearly  your problem and tell us and we will answer you in 24 hours.

4. If there any problem with tv box Pls send us a video or send the PCBA to us, Our professional engineer will try to solve the question and feedback you. Giving you a satisfy answer. Also we will check every                  products before sending.



Q3: What’s the delivery time? (How long do you need to prepare my goods?)

 7 days For sample and small quantity order

15-30 working days for OEM & ODM orders (based on different quantities/request/).



Q4: How will you deliver my goods to me? How long to wait?

 You can select shipping options possibly, such as DHL, UPS, Fedex, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo for                     large quantity. 3-7 days for international express, 5-10 days for air cargo, 20-50 days by sea cargo.



Q5: What is the payment method?

We accept T/T,Western Union, Credit Card, etc according to the exact order amount.



Q6: How can I track the goods?

We will send you tracking number at second day after parcel shipping out. You can track the parcel on website.



Q7: Can you provide EU or US,UK,AU plug power adapter?

Yes, there are EU,UK,US,AU four standards of plugs are available. We will send the different adapter to you according your country and requirements.


style="display:block;">
X96 S (S905Y2)
CPUAmlogic S905Y2 Quad Core ARM Cortex A53 @2GHz
GPUARM Dvalin MP2 GPU
MemoryLowPower DDR4: 4GB(Option: 1GB / 2GB / 3GB )
FlasheMMC:32GB(Option: 8GB / 16GB / 64GB )
WiFiIEEE 802.11 a/b/g/n/ac; 2.4G / 5.8G
BTBT 4.2
MoudlePlastic: Black Color
I/O1*HDHD 2.1, Support HD CEC, Dynamic HDR and HDCP 2.2, 4Kx2K@75 max resolution output.
1*USB, 1*Micro USB1* USB 3.0 ;1*Micro USB 2.0
1*IRRemote Reciver Connect
1*TF CARDSupport 4GB/8GB/16GB/32GB/64GB
PowerDC 5V/1A; LED indicator, Working: Blue;
Software
OSAndroid 8.1
Video- Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
- Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
- Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding
- Video/Picture Decoding
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- H.264 MVC up to 1080P@60fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
AudioSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageEnglish French German Spanish Italian etc multilateral languages
Appliactions
OnlineBrowse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.
AppsApps download freely form android market、amazon app store etc.
MediumLocal Media playback, Support HDD, U Disck, TF Card .
Talk onlineSupport SKYPE video call, MSN, facebook, twitter, QQ etc
OthersSupport Email, office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Accessories:
1、HD cable *1
2、IR Line *1
3、IR Remote *1
6、Micro USB Line *1
6、USB adapter *1
4、User Manual *1
5、Package box *1
