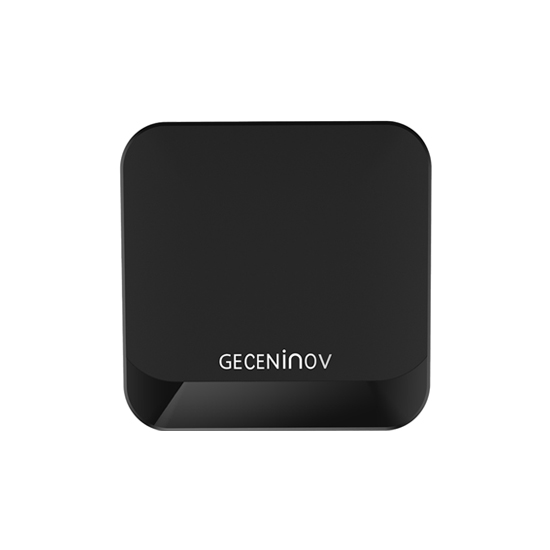

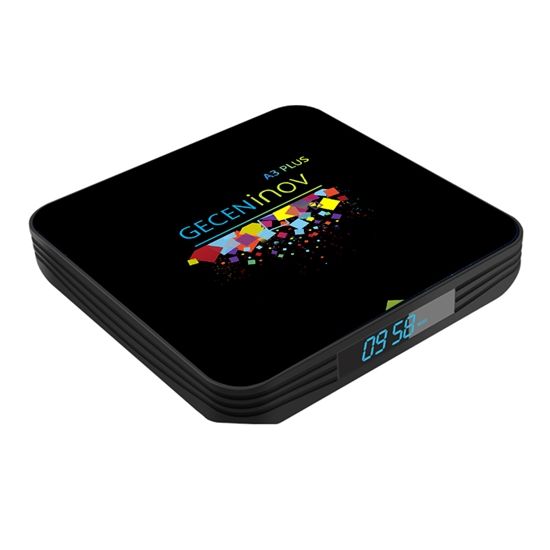

A3 plus Amlogic S905X3 tv box Support BT USB 3.0 Smart Tv Box

Home > Products > TV BOX > Amlogic > A3 plus Amlogic S905X3 tv box Support BT USB 3.0 Smart Tv Box

Features:

- CPU:Amlogic S905X364-bit quad core ARM® Cortex™ A55 CPU

- GPU:G31™ MP2 GPU processor

- OS: Android 9.0

- SDRAM:DDR34GB; Flash:EMMC 32GB/64GB (optional)

- LAN: 10M/100M Ethernet

- Bluetooth: 4.0

- USB Host: 1*High speedUSB 3.0

-H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

A3 plus

A3 plus

A3 plus

A3 plus

A3 plus

A3 plus

A3 plus

A3 plus

A3 plus


Whats in the box?

1. - 1 x TV Box

2. - 1 x Remote control(Battery not include)

3. - 1 x Power Supply

4. - 1 x HD Cable

5. - 1 x User Manual



How to use it?

1. Turn on The TV and set the TV to “HD” mode

2. HD cord is connected to “TV BOX”, and the other side is connected TV HD interface.

3. Connect to the power adapter, the machine automatically boot into the Android OS

4. The wireless mouse receiver is connected to TV Box USD interface, Then you can use wireless mouse to operate         it.









A3 plus Amlogic S905X3 tv box Support BT USB 3.0 Smart Tv Box

Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years. Gecen Intelligent the branch company of “Gecen”.

Our product range are Android TV Box, IPTV Service, WiFi product and Smart Home.

We have our own factory, which has more than 20,000 square meters. we own a professional factory with more than 300 workers for 12 production lines .

A3 plus Amlogic S905X3 tv box Support BT USB 3.0 Smart Tv Box

FAQ

Q1: If I have no idea to customize, Could you help me make wonderful giftbox?

Sure, We have prefessional designer to customize, Just let us know what style you want then we will send serval first draft for you to choose. We believe that we can design a unique amazing giftbox to you.



Q2: What after-service you can guarantee?

1. We provide one year Warranty and after- sale service.

2. We will do everything we can to reply your question.

3. Please clearly  your problem and tell us and we will answer you in 24 hours.

4. If there any problem with tv box Pls send us a video or send the PCBA to us, Our professional engineer will try to solve the question and feedback you. Giving you a satisfy answer. Also we will check every           products before sending.



Q3: What’s the delivery time? (How long do you need to prepare my goods?)

 7 days For sample and small quantity order

15-30 working days for OEM & ODM orders (based on different quantities/request/).



Q4: How will you deliver my goods to me? How long to wait?

 You can select shipping options possibly, such as DHL, UPS, Fedex, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo for            large quantity. 3-7 days for international express, 5-10 days for air cargo, 20-50 days by sea cargo.



Q5: What is the payment method?

We accept T/T,Western Union, Credit Card, etc according to the exact order amount.



Q6: How can I track the goods?

We will send you tracking number at second day after parcel shipping out. You can track the parcel on website.



Q7: Can you provide EU or US,UK,AU plug power adapter?

Yes, there are EU,UK,US,AU four standards of plugs are available. We will send the different adapter to you according your country and requirements.

style="display:block;">
A3
Product Spec

Hardware configuration
CPUAmlogic S905X3 64-bit quad core ARM Cor-tex A55 CPU
GPUG31™ MP2 GPU processor
RAM2G/4G
ROM32G/64G
WIFIIEEE 802.11 a/b/g/n/ac ;  2.4G / 5G
Memory cardSupport TF card, up to 128GB
OTGyes
HOSTUSB 2.0 /3.0
Operating systemAndroid 9.0
Video OutputHD,AV
BluetoothYES ;
Product Function

FittingRemovable Storage
BrowserOpera,SkyFile,Dolphin,Etc.
MediaSupport online video, television, movies, music, radio
OfficeWORD,EXCEL,POWERPOINT,PDF,TXT
3DHardward 3D graphics acceleration
Video&Image EncodingSupport multi-video decoder up to 4x1080P@60fps
SSupports multiple "secured" video decoding sessions and simultaneous decoding and encoding
Supports JPEG 8K*8K;
Support 1*1080P@60fps/2*1080P@30fps/4*720P@30fps simultaneous encoding;
low-latency encoding
Support the rotation of image/video / support the scaling of image
Audio playbackSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video player FormatVP9 Profile-2 up to 8Kx4K@24 fps
H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
AVS2-P2 Profile up to 8Kx4K@24 fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
File FormatSupports*.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and*.jpg file formats
DLNAYES
Language SupportBuilt-in 33 languages
