X96max+ Amlogic S905X3 5.8GHz Wifi 1000M 4K 60fps Media Player

Home > Products > TV BOX > Amlogic > X96max+ Amlogic S905X3 5.8GHz Wifi 1000M 4K 60fps Media Player

Highlight

- CPU: Amlogic S905X3 64-bit Quad Core ARM® Cortex™ A55;

- GPU:ARM Mali-G31

-Android 9.0 OS;

- RAM/ROM: 2GB/16GB, 4GB/32GB, 4GB/64GB;

-Support HD: 8K 24fps, 4K  60fps, UHD, HDR+;

- Support HD: DLNA/Airplay;

- Support HD 2.1, USB3.0, USB2.0;

- Support 2.4GHz Wifi/2.4G+5.8GHz Dual Wifi, BT4.1;

-Support Firmware Online Upgrade.


- There are 3 Options for X96Max:

A: 2GB+16GB+2.4G Wifi+100M(No BT)

B: 4GB+32GB+Dual Wifi+BT4.1+1000M

C: 4GB+64GB+Dual Wifi+BT4.1+1000M

X96max

X96max

Smarter, faster, and more powerful than ever chipset


X96max

Say goodbye to Background Cleaning and Sluggish Performances. We adopted the newest cutting edge LPDDR4 Memory.


X96max

X96max

X96max

HDR makes it's possible than color gamut expands 100% and maximum


X96maxX96maxX96max

X96max

Whats in the box?

1. - 1 x TV Box

2. - 1 x Remote control(Battery not include)

3. - 1 x Power Supply

4. - 1 x HD Cable

5. - 1 x User Manual

How to use it?

6. Turn on The TV and set the TV to “HD” mode

7. HD cord is connected to “TV BOX”, and the other side is connected TV HD interface.

8. Connect to the power adapter, the machine automatically boot into the Android OS

9. The wireless mouse receiver is connected to TV Box USD interface, Then you can use wireless mouse to operate it.

X96max  Amlogic S905X3 5.8GHz Wifi 1000M 4K 60fps Media Player

Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years. Gecen Intelligent the branch company of “Gecen”.

Our product range are Android TV Box, IPTV Service, WiFi product and Smart Home.
We have our own factory, which has more than 20,000 square meters. we own a professional factory with more than 300 workers for 12 production lines .

X96max  Amlogic S905X3 5.8GHz Wifi 1000M 4K 60fps Media Player

FAQ

Q1: If I have no idea to customize, Could you help me make wonderful giftbox?

Sure, We have prefessional designer to customize, Just let us know what style you want then we will send serval first draft for you to choose. We believe that we can design a unique amazing giftbox to you.



Q2: What after-service you can guarantee?

1. We provide one year Warranty and after- sale service.

2. We will do everything we can to reply your question.

3. Please clearly  your problem and tell us and we will answer you in 24 hours.

4. If there any problem with tv box Pls send us a video or send the PCBA to us, Our professional engineer will try to solve the question and feedback you. Giving you a satisfy answer. Also we will check every          products before sending.



Q3: What’s the delivery time? (How long do you need to prepare my goods?)

 7 days For sample and small quantity order

15-30 working days for OEM & ODM orders (based on different quantities/request/).



Q4: How will you deliver my goods to me? How long to wait?

 You can select shipping options possibly, such as DHL, UPS, Fedex, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo for            large quantity. 3-7 days for international express, 5-10 days for air cargo, 20-50 days by sea cargo.



Q5: What is the payment method?

We accept T/T,Western Union, Credit Card, etc according to the exact order amount.



Q6: How can I track the goods?

We will send you tracking number at second day after parcel shipping out. You can track the parcel on website.



Q7: Can you provide EU or US,UK,AU plug power adapter?

Yes, there are EU,UK,US,AU four standards of plugs are available. We will send the different adapter to you according your country and requirements.


style="display:block;">
HardwareCPUAmlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU
GPUG31™ MP2 GPU processor
MemoryLPDDR4: 2GB/4GB
FlasheMMC: 32GB(Option: 16GB/64GB )
WiFiIEEE 802.11 a/b/g/n/ac; 2.4G / 5G
BluetoothBT; Support Voice Remote
MoudlePlastic: Black Color

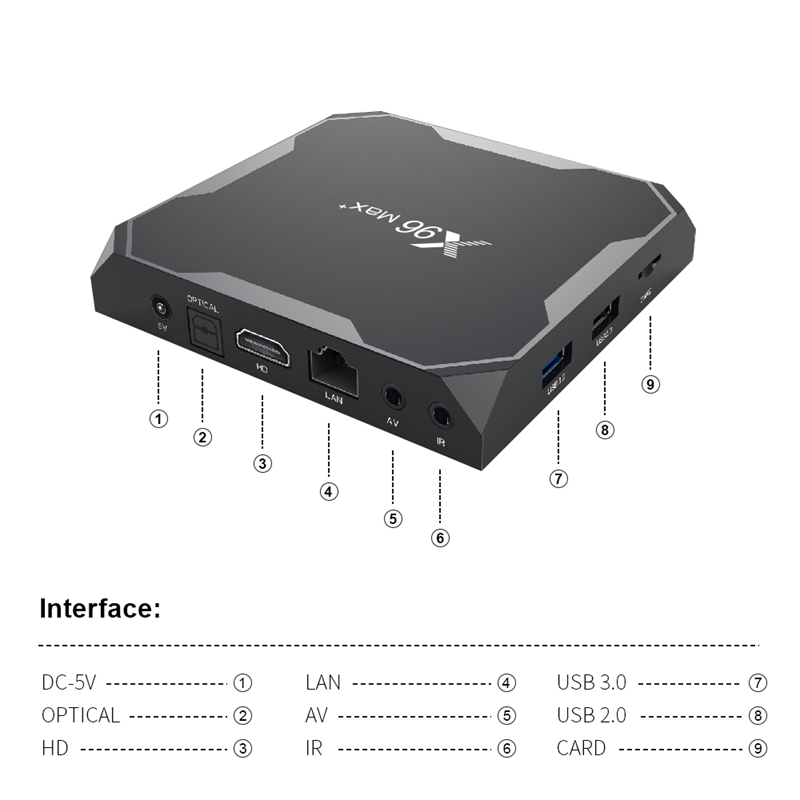

I/O1*HDHD 2.1, Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output
1*AV OUT480i/576i standard definition output
2*USB1 * USB 3.0; 1*USB 2.0
1*IR ReciverRemote Reciver Connect
1*RJ45Ethernet Interface; Support 10/100M/1000M
1*TF CARDSupport 4GB/8GB/16GB/32GB/64GB
PowerDC 5V/2A;
softwareOSAndroid 9.0
Video- Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
- Support multi-video decoder up to 4x1080P@60fps
- Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding
- Video/Picture Decoding
- VP9 Profile-2 up to 8Kx4K@24 fps
- H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
- AVS2-P2 Profile up to 8Kx4K@24 fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
AudioSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageEnglish French German Spanish Italian etc multilateral languages
Packing
content

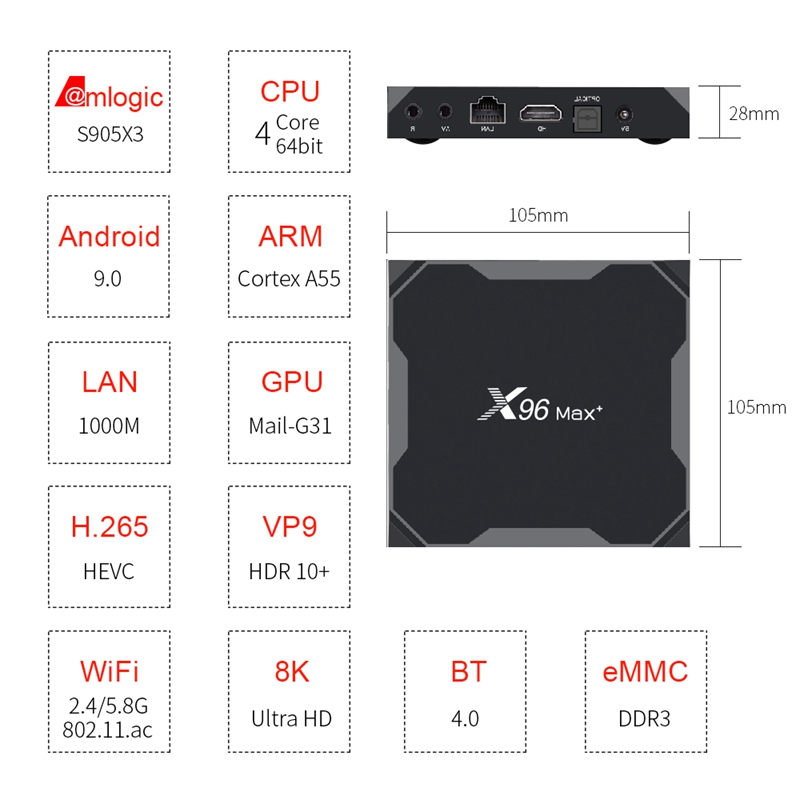

Product dimension105*105*28(MM)
Qty per unit packing1pc
Unit packing: (LxWxH)205*140*50(MM)
Unit packing (G.W.)400KG
Qty per export carton20PCS
Export carton (WxHxL)42*27*30.5CM
Export carton (G.W.)8.6KG
