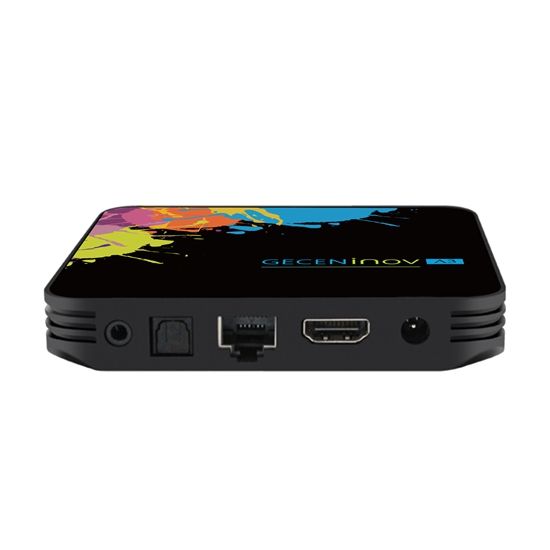

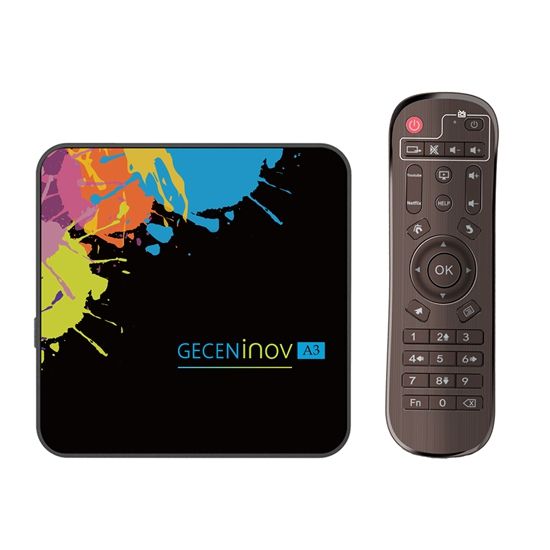

A3 Android 10 Tv Box Amlogic S905X3 Dual WiFi 8k Tv Box

Home > Products > TV BOX > Amlogic > A3 Android 10 Tv Box Amlogic S905X3 Dual WiFi 8k Tv Box


- CPU: Amlogic S905X3 64-bit Quad Core ARM® Cortex™ A55;

- GPU:ARM Mali-G31

-Android 9.0 OS;

- RAM/ROM: 2GB/16GB, 4GB/32GB, 4GB/64GB;

-Support HD: 8K 24fps, 4K  60fps, UHD, HDR+;

- Support HD: DLNA/Airplay;

- Support HD 2.1, USB3.0, USB2.0;

- Support 2.4GHz Wifi/2.4G+5.8GHz Dual Wifi, BT4.1;

-Support Firmware Online Upgrade.

- There are 3 Options for A3:

A: 2GB+16GB+2.4G Wifi+100M(No BT)

B: 4GB+32GB+Dual Wifi+BT4.1+1000M

C: 4GB+64GB+Dual Wifi+BT4.1+1000M

A3 X3

A3 X3

A3 X3

A3 X3

A3 X3A3 X3

Whats in the box?

1. - 1 x TV Box

2. - 1 x Remote control(Battery not include)

3. - 1 x Power Supply

4. - 1 x HD Cable

5. - 1 x User Manual

How to use it?

1. Turn on The TV and set the TV to “HD” mode

2. HD cord is connected to “TV BOX”, and the other side is connected TV HD interface.

3. Connect to the power adapter, the machine automatically boot into the Android OS

4. The wireless mouse receiver is connected to TV Box USD interface, Then you can use wireless mouse to operate it.

A3 Android 10 Tv Box Amlogic S905X3 Dual WiFi 8k Tv Box

Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years. Gecen Intelligent the branch company of “Gecen”.

Our product range are Android TV Box, IPTV Service, WiFi product and Smart Home.

We have our own factory, which has more than 20,000 square meters. we own a professional factory with more than 300 workers for 12 production lines .

A3 Android 10 Tv Box Amlogic S905X3 Dual WiFi 8k Tv Box

A3 X3

Product Spec

Hardware configuration
CPUAmlogic S905X3 64-bit quad core ARM Cor-tex A55 CPU
GPUG31™ MP2 GPU processor
WIFIIEEE 802.11 a/b/g/n/ac ;  2.4G / 5G
Memory cardSupport TF card, up to 128GB
HOSTUSB 2.0 /3.0
Operating systemAndroid 9.0
Video OutputHD,AV
BluetoothYES ;
Product Function

FittingRemovable Storage
MediaSupport online video, television, movies, music, radio
3DHardward 3D graphics acceleration
Video&Image EncodingSupport multi-video decoder up to 4x1080P@60fps
SSupports multiple "secured" video decoding sessions and simultaneous decoding and encoding
Supports JPEG 8K*8K;
Support 1*1080P@60fps/2*1080P@30fps/4*720P@30fps simultaneous encoding;
low-latency encoding
Support the rotation of image/video / support the scaling of image
Audio playbackSupports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video player FormatVP9 Profile-2 up to 8Kx4K@24 fps
H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
AVS2-P2 Profile up to 8Kx4K@24 fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
File FormatSupports*.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and*.jpg file formats
Language SupportBuilt-in 33 languages
